- Display
- Issues
- Resolution
- Phones
- LG Spectrum : 1280 X 720 Format : 16 x 9
- Apple iPhone 4 & 5 : 1136 x 640 Format : 16 x 9
- Tablets:
- iPad: 1024-by-768 Format : 4 x 3
- Android: example:
- Asus Transformer Infinity TF700 1,920x1,200 Format : 16 x 9
- Iconia Tab A100 2011 1024x600 Format : 16 x 9
- Laptops : 1366 x 768 and up
- Mostly 16 x 9
- Desktops :
- Still fair number of 4 x 3 around
- Some examples
- Phones
- Screen Size :
- Phones : 4" - 4.5"
- Tablets : 5" - 12" (Acer)
- Laptops : 8" - 17"
- Desktops : 12 - 30+
- Flicker
- Impact of a Flickering Display
- CFF 60 Hz/50 Hz
- Recommended flicker rates between 66 Hz and 120 Hz (Bridgeman, 1998)
- Light levels and display size impact CFF
- Depends upon length of off cycle (very short in LCD longer in others)
- Flicker vs Update Rate - an aside on High Frame Rate Movies
- 5 Hz
- 10 Hz
- 15 Hz
- 20 Hz
- 30 Hz
- Flicker is not the same as Apparent Motion
- The shorter off time of LCD displays leads to motion blur
- Examples:

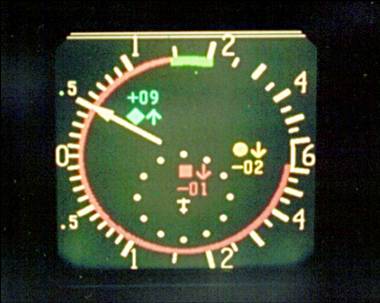

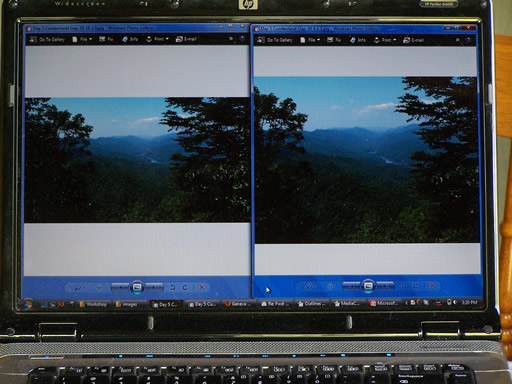

- LCD

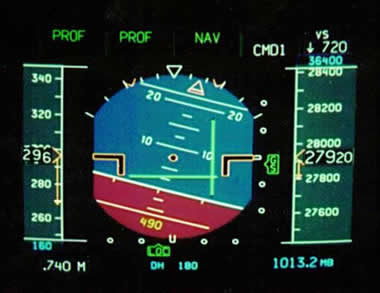

- CRT
- Color/Color Gamut
- Let us look back at the CIE Diagram
- What colors can the diplay really reproduce?
- Lighting

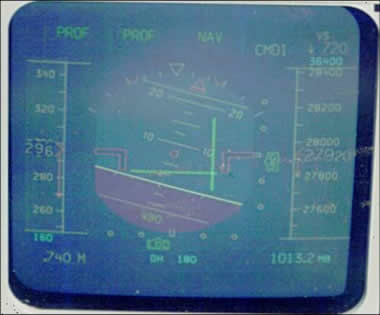

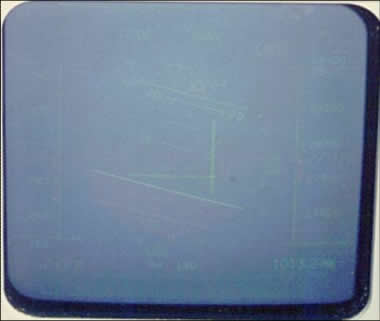

- Effects on Contrast

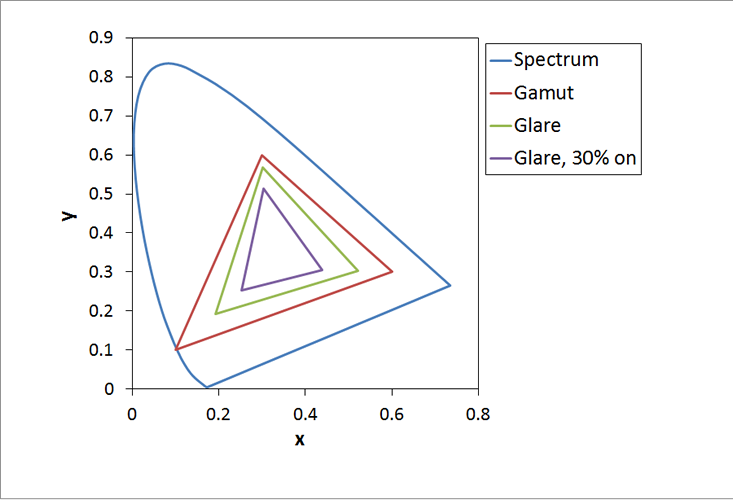

- Effects on Color

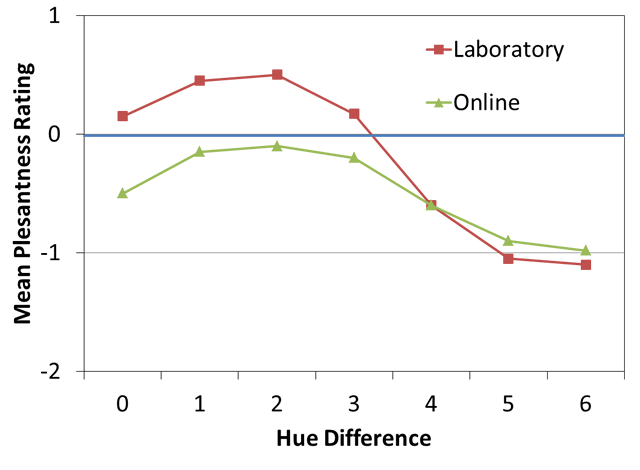

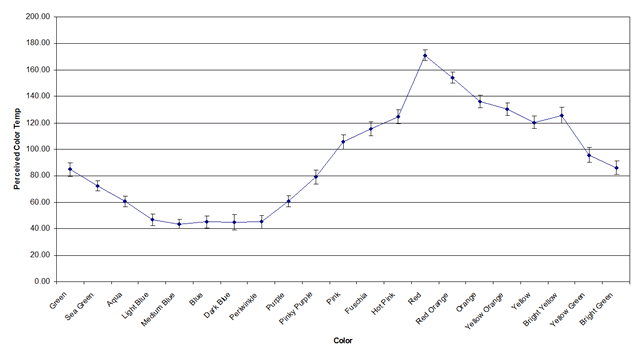

- Impact on Color Data
- Impact on Color Data
- Effects on Contrast
- Resolution
- Summary
- Displays are highly variable
- They impact what is experimence
- We are saved to a large extent by the fact that the eyes work as a contrast engine
- We don't see point by point
- We see how one area changes relative to next area
- However, design for good contrast and simple arrangments to avoid the subltlies where these issues can be problematic
